Modular robotics

Number of products: 4

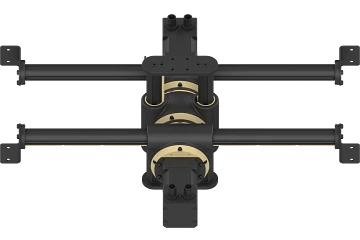

Apiro room gantry

Product information
  • Payload up to 1.5 kg
  • Working area up to 625 x 625 x 625 mm
  • Degrees of freedom: 3
  • Speed: up to 0.1 m/s
  • Repeat accuracy ± 0.5 mm
  • Min. service life: 500 thousand cycles
  • Lighter than conventional igus gantry robots
Optionally available
  • Other sizes on request
  • Energy chains (not included in the scope of delivery)
Upon request
Shop now

Apiro line gantry

Product information
  • Payload up to 1.5 kg
  • Working area up to 625 x 625 mm
  • Degrees of freedom: 2
  • Speed: up to 0.1 m/s
  • Repeat accuracy ± 0.5 mm
  • Min. service life: 1 million cycles
  • Lighter than conventional igus gantry robots
Optionally available
  • Other sizes on request
  • Energy chains (not included in the scope of delivery)
Upon request
Shop now

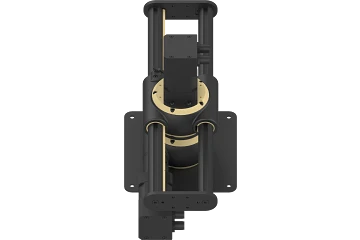

Apiro rotary linear table

Product information
  • Payload up to 1.5 kg
  • Working space up to 390 mm
  • Degrees of freedom: 2
  • Speed: up to 0.1 m/s
  • Min. service life: 1 million cycles
  • Repeat accuracy ± 0.5 mm
Optionally available
  • Other sizes on request
  • Energy chains (not included in the scope of delivery)
Upon request
Shop now

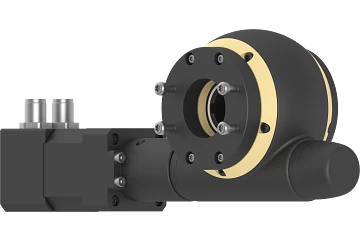

Apiro rotary unit

Product information
  • Payload up to 2.5 kg
  • Degrees of freedom: + 1 DOF
  • Speed: up to 20 rpm
  • Repeat accuracy <0.5°
  • Min. service life: 1 million cycles
Upon request
Shop now
