The Classic Series: our most popular e-chain® cable carriers from past generations
For your convenience, igus® continues to make available older generation e-chains®. These cable carriers are ideal for previously designed machines that may need spare/replacement parts. For new applications, we suggest utilizing our current line e-chain® products for the latest technical advancements and best performance.

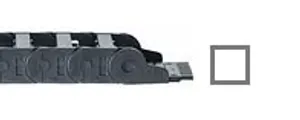

E2 Medium
E2 mini - One and two-piece, small through medium sizes
Closed design
Inner height hi: 18 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 28 - 180 mm
Pitch: 30,5 mm

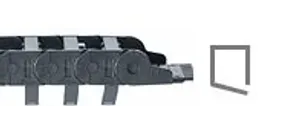

Snap-open along outside on one side
Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm
E2 R
Two-part E-Tube
Inner height hi: 35 mm
Inner widths Bi: 50 - 75 mm
bending radii R: 75 - 250 mm
Pitch: 33,3 mm
Two-part E-Tube
Inner height hi: 45 mm
Inner widths Bi: 75 - 175 mm
bending radii R: 100 - 300 mm
Pitch: 36 mm
E4/light
With crossbars at every link, snap-open along both sides
- Series 140 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm
- Series 142 , Inner height hi: 62 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm
- Series 150 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm
With crossbars at every other link, snap-open along both sides
- Series 140 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm
- Series 142 , Inner height hi: 62 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm
- Series 150 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

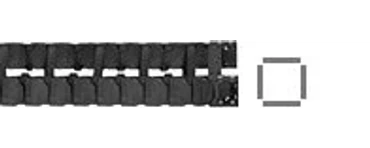

E4/0

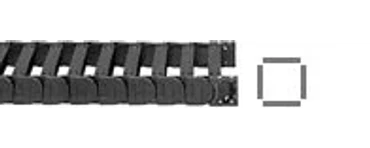

With crossbars at every link, snap-open along both sides
- Series 22 , Inner height hi: 28 mm, Inner widths Wi: 40 - 300 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm
- Series 28 , Inner height hi: 32 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 63 - 300 mm, Pitch: 56 mm
- Series 38 , Inner height hi: 42 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 75 - 350 mm, Pitch: 67 mm
- Series 40 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm
- Series 50 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 1000 mm, Pitch: 91 mm
With crossbars at every other link, snap-open along both sides
- Series 23 , Inner height hi: 28 mm, Inner widths Wi: 40 - 300 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm
- Series 29 , Inner height hi: 32 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 63 - 300 mm, Pitch: 56 mm
- Series 39 , Inner height hi: 42 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 75 - 350 mm, Pitch: 67 mm
- Series 41 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm
- Series 51 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 1000 mm, Pitch: 91 mm

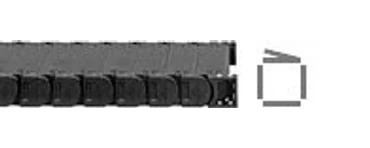

E-Tube, snap-open along both sides
- Series R76 , Inner height hi: 28 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 75 - 250 mm, Pitch: 46 mm
- Series R77 , Inner height hi: 32 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 125 - 300 mm, Pitch: 56 mm
- Series R78 , Inner height hi: 42 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 125 - 350 mm, Pitch: 67 mm
- Series R88 , Inner height hi: 56 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm
- Series R98 , Inner height hi: 80 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 200 - 1000 mm, Pitch: 91 mm

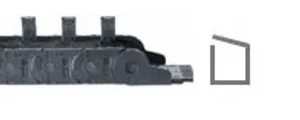

"Zipper-like" design for quick opening and closing
Rip-open from outside
Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm
autoglide - Version 2 - For Series 200 e-chains®
Injection-molded autoglide teeth along the inner radius.
Inner height hi: 25 mm
Inner height Bi: 57 mm
Bending radii R: 100 mm
Pitch: 45 mm
