Lead Screw Assemblies with Motors

Number of products: 6

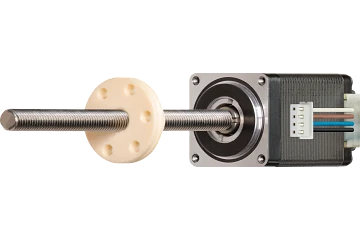

drylin® lead screw assemblies with motor, stranded wires with JST connector, NEMA11

  • Installation size Motor: NEMA11 / Flange dimension 28mm
  • Protection class: IP40
  • Holding torque: 0.12Nm
  • Rated current: 1.00A
  • Linear feed/1.8° step: 0.0254mm
  • Force: 50N
  • Motor connection: stranded wires with JST connector
  • Efficient dryspin® high helix thread: DST 6.35x5.08
  • Self-lubricating dryspin® lead screw nut: 15mm
from 207.97 USD/Pc.
1 variants ready for shipping:
1 variants within 12 working days
Shop now

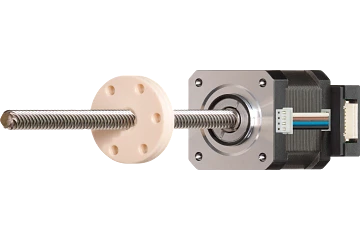

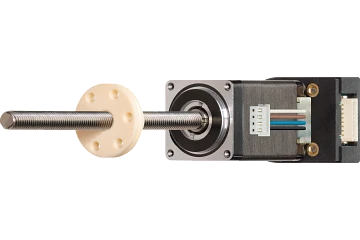

drylin® lead screw assemblies with motor, stranded wires with JST connector, NEMA11

  • Installation size Motor: NEMA11/Flange dimension 28mm
  • Protection class: IP40
  • Holding torque: 0.12Nm
  • Rated current: 1.00A
  • Linear feed/1.8° step: 0.0254mm
  • Force: 50N
  • Motor connections: stranded wires with JST connector, encoder with JST connector
  • Efficient dryspin® high helix thread: DST 6,35x5,08
  • Self-lubricating dryspin® lead screw nut: 15mm
from 356.32 USD/Pc.
1 variants ready for shipping:
1 variants within 12 working days
Shop now

drylin® lead screw assemblies with motor, stranded wires with JST connector, NEMA17

  • Installation size Motor: NEMA11/Flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Linear feed/1.8° step: 0.075mm
  • Force: 100N
  • Motor connection: stranded wires with JST connector
  • Efficient dryspin® high helix thread: DST 8x15
  • Self-lubricating dryspin® lead screw nut: 20mm
from 227.60 USD/Pc.
Shop now

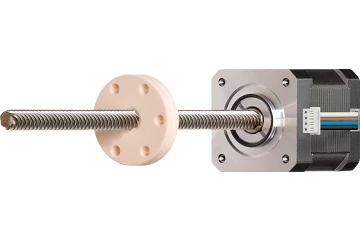

drylin® lead screw assemblies with motors, stranded wires with JST connector and encoder, NEMA17

  • Installation size Motor: NEMA11/Flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Linear feed/1.8° step: 0.075mm
  • Force: 100N
  • Motor connections: stranded wires with JST connector, encoder with JST connector
  • Efficient dryspin® high helix thread: DST 8x15
  • Self-lubricating dryspin® lead screw nut: 20mm
from 384.54 USD/Pc.
Shop now

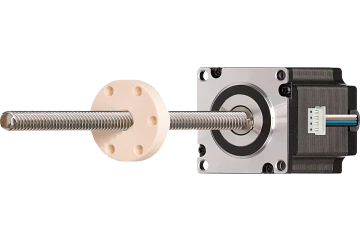

drylin® lead screw assemblies with motors, stranded wires with JST connector, NEMA23

  • Installation size Motor: NEMA23/Flange dimension 56mm
  • Protection class: IP40
  • Holding torque: 2.00Nm
  • Rated current: 4.20A
  • Linear feed/1.8° step: 0.06mm
  • Force: 500N
  • Motor connection: stranded wires with JST connector
  • Efficient dryspin® high helix thread: DST 10x12
  • Self-lubricating dryspin® lead screw nut: 25mm
from 362.34 USD/Pc.
1 variants ready for shipping:
1 variants within 12 working days
Shop now

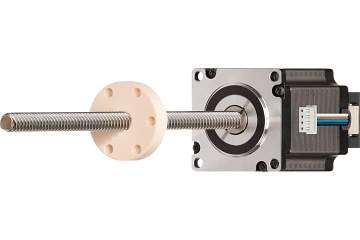

drylin® lead screw assemblies with motors, stranded wires with JST connector and encoder, NEMA23

  • Installation size Motor: NEMA23/Flange dimension 56mm
  • Protection class: IP40
  • Holding torque: 2.00Nm
  • Rated current: 4.20A
  • Linear feed/1.8° step: 0.06mm
  • Force: 500N
  • Motor connections: stranded wires with JST connector, encoder with JST connector
  • Efficient dryspin® high helix thread: DST 10x12
  • Self-lubricating dryspin® lead screw nut: 25mm
from 502.44 USD/Pc.
1 variants ready for shipping:
1 variants within 12 working days
Shop now
