chainflex® fiber optic cable CFLG-G

Discontinued Model

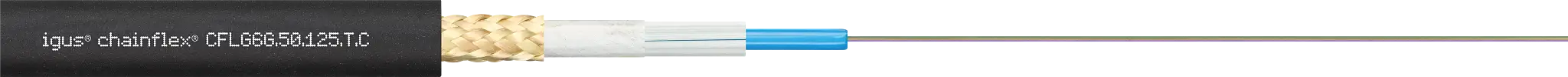

CFLG.6G.50/125.TC product image

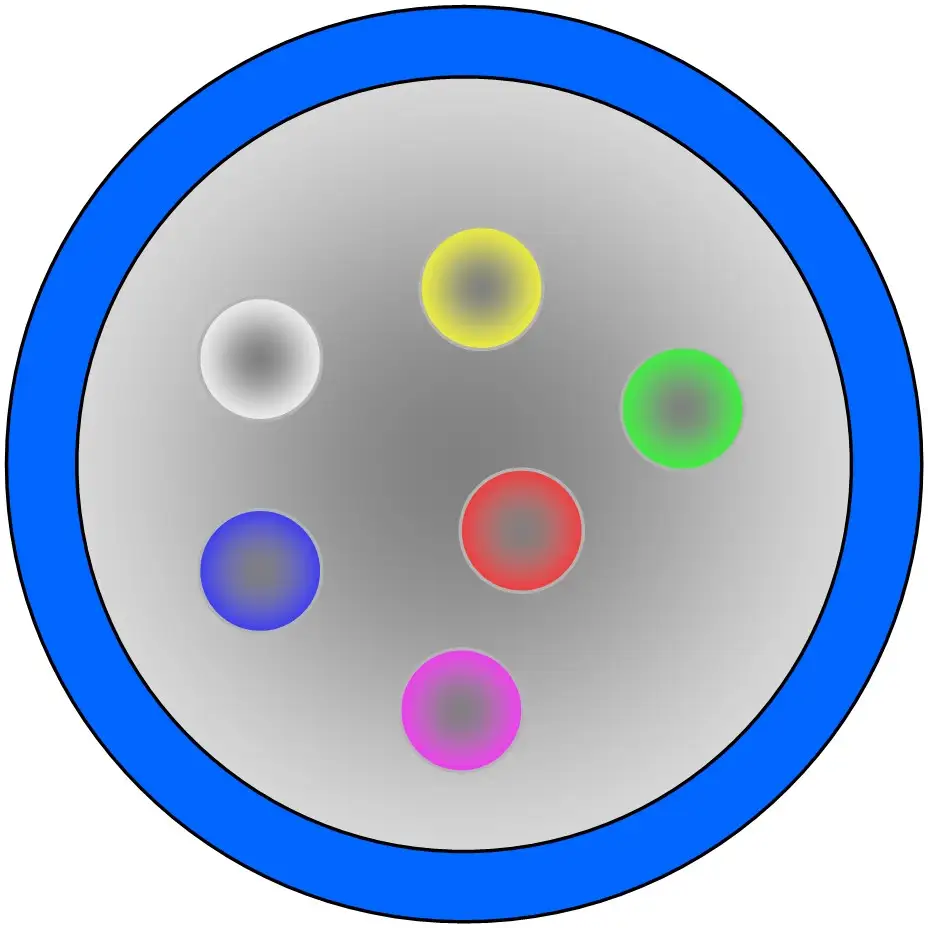

CFLG.6G.50/125.TC technical drawing

CFLG.6G.50/125.TC video

1 of 3

CFLG.6G.50/125.TC product image

CFLG.6G.50/125.TC technical drawing

CFLG.6G.50/125.TC video

Requirements: Glass-fiber cable for heaviest duty applications
Outer jacket: TPE
Halogen-free
Silicone-free
Hydrolysis and microbe-resistant
Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
UV-resistant
PVC-free
chainflex® class: 7.6.4.1

Item no.

CFLG.6G.50/125.TC

formerly: CFLG-6G-50/125-TC

Number of fibres/Fibre diameter/Conductor nominal cross section

6x50/125

Outer diameter (d) max. [in]

This article is a discontinued model.

Typical application areas

For heaviest duty applications
Maximum EMC protection, with high transmission qualities
Almost unlimited resistance to oil, also with bio-oils
Indoor and outdoor applications
Unsupported and gliding travel distances (horizontal) up to 400 m and more
Crane applications, conveyer technology, low-temperature applications

Guaranteed service life for this series according to guarantee conditions
Further information: chainflex® guarantee

Double strokes*	5 million	7.5 million	10 million
Temperature,	R min.	R min.	R min.
from/to [°C]	[Factor x d]	[Factor x d]	[Factor x d]
-40 / -30	12.5	13.5	14.5
-30 / +70	10	11	12
+70 / +80	12.5	13.5	14.5

* Higher number of double strokes possible - use the service life calculation function on this page.
