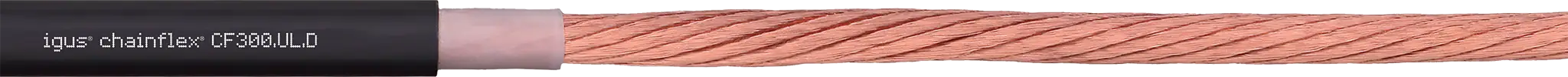

chainflex® motor cable CF300-UL-D

1 of 4

For extremely heavy duty applications
TPE outer jacket
Hydrolysis and microbe-resistant
Flame retardant
Silicone-free
UV resistance: High
Oil-resistant (following DIN EN 60811-404), resistant to bio oils (following VDMA 24568 with Plantocut 8 S-MB tested by DEA)
chainflex® class: 6.6.4.2

Item no.

CF300.UL.40.01.D

formerly: CF300-UL-40-01-D

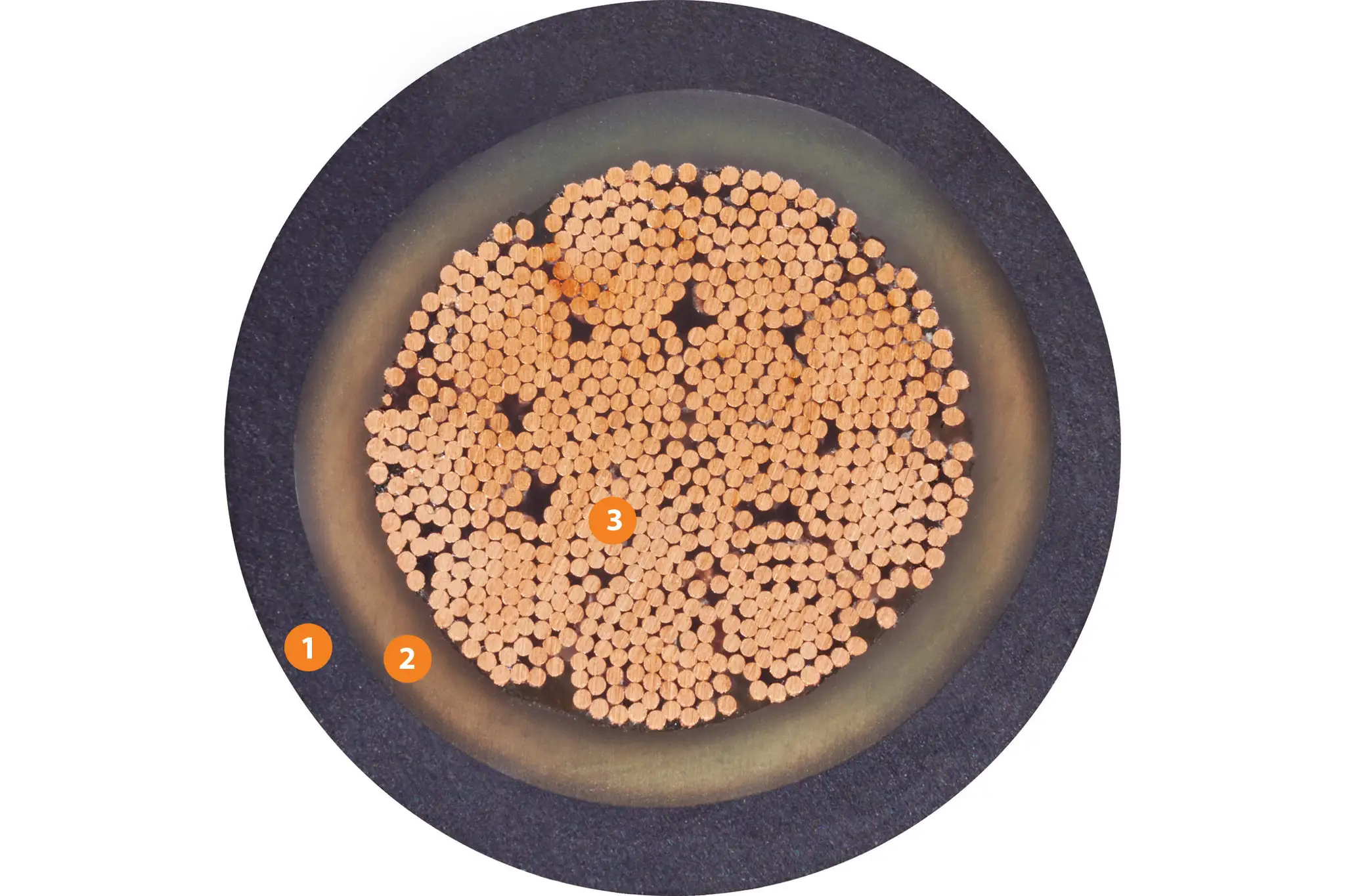

Number of cores and conductor nominal cross section

1 x 12 AWG (4.0)

Outer diameter (d) max. [in]

Typical application areas

For extremely heavy duty applications
Almost unlimited resistance to oil, also with bio-oils
Indoor and outdoor applications, UV resistant
Unsupported and gliding travel distances up to 400 m and more
Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications

Guaranteed service life for this series according to guarantee conditions
Further information: chainflex® guarantee

Double strokes*					5 million	7.5 million	10 million
Temperature,	v max. [m/s]		a max.	Travel	R min. [Factor x d]	R min. [Factor x d]	R min. [Factor x d]
from/to [°C]	unsupported	gliding	[m/s²]	[m]
-35 / -25					10	11	12
-25 / +80	10	6	100	≤ 400	7.5	8.5	9.5
+80 / +90					10	11	12

* Higher number of double strokes possible - please ask for your individual calculation.
