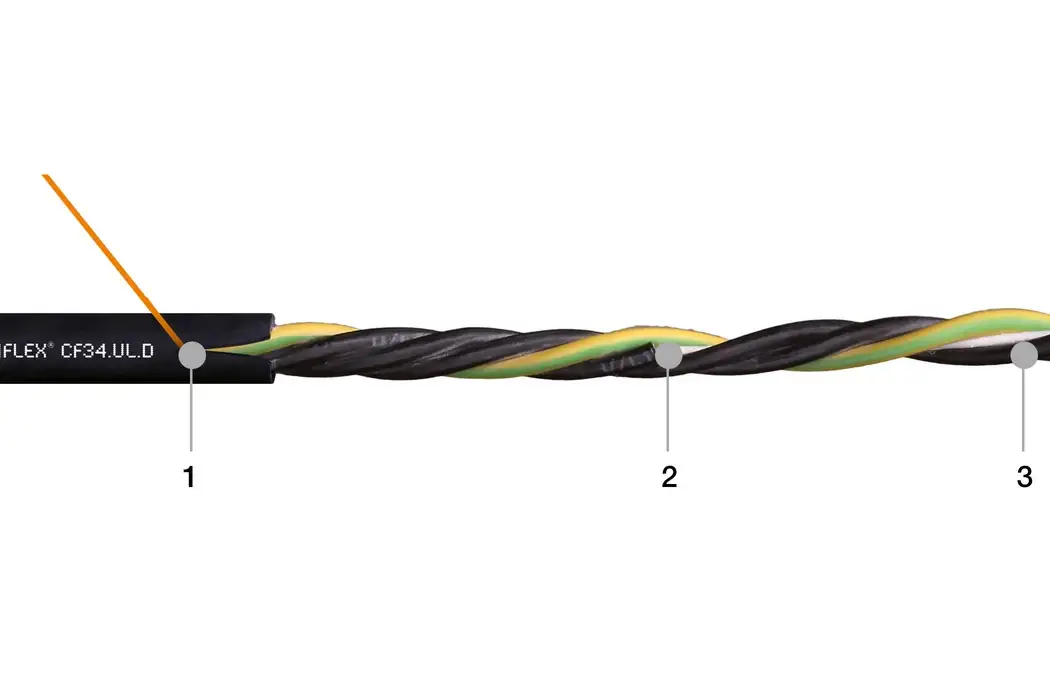

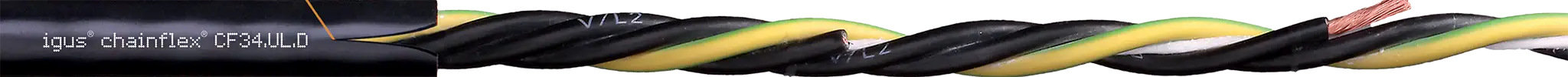

chainflex® motor cable CF34-UL-D

1 of 4

Requirements: For extremely heavy duty applications
Outer jacket: TPE
Hydrolysis and microbe-resistant
Flame retardant
Silicone-free
UV resistance: High
Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
CFRIP®
chainflex® class: 6.6.4.2

Item no.

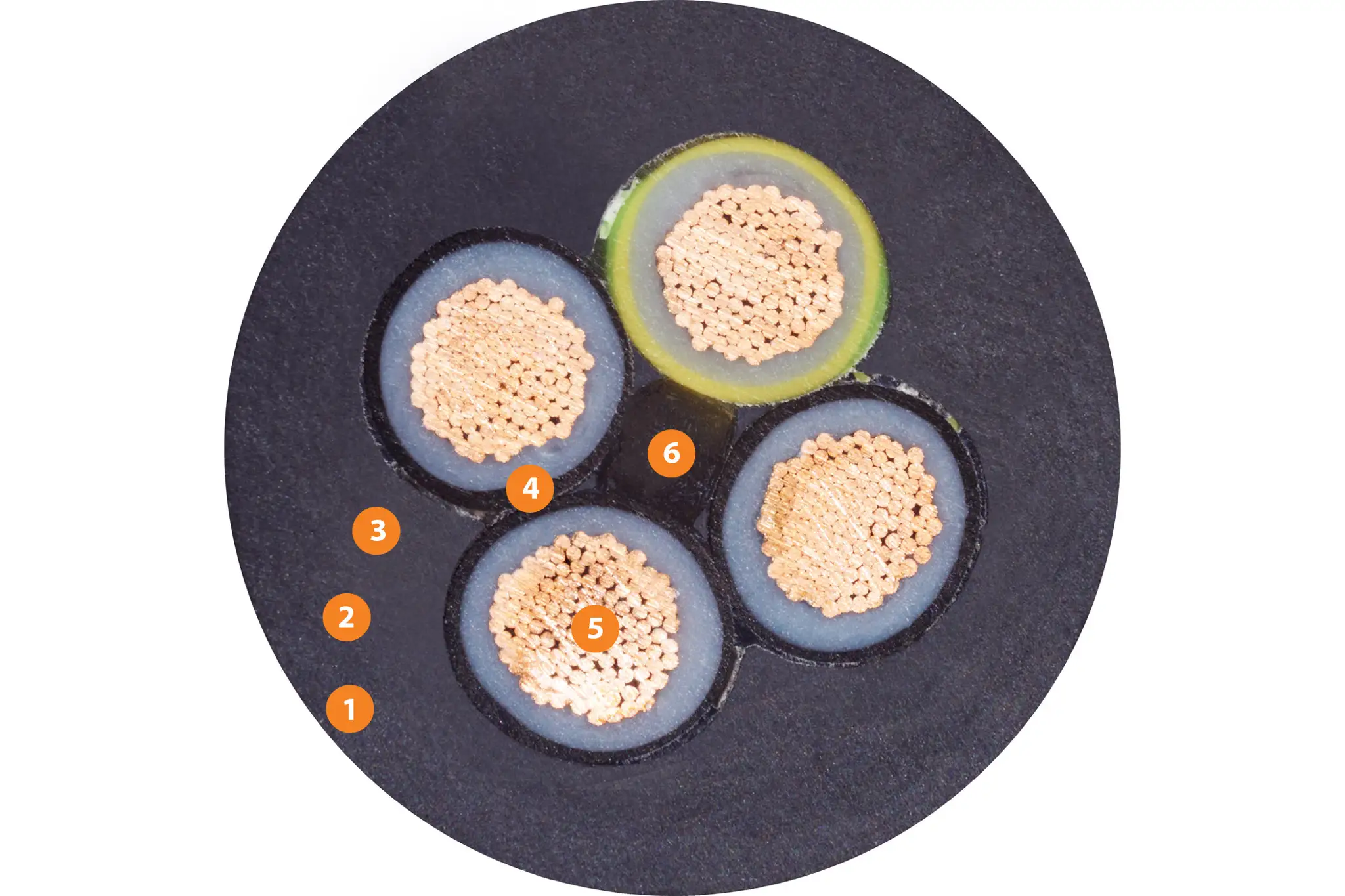

CF34.UL.15.04.D

formerly: CF34-UL-15-04-D

Number of cores and conductor nominal cross section

4 x 16 AWG (1.5)

Outer diameter (d) max. [in]

Typical application areas

For extremely heavy duty applications
Almost unlimited resistance to oil, even bio-oils
Indoor and outdoor applications, UV-resistant
Unsupported travels and gliding applications of up to 400 m and more
Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications

Guaranteed service life for this series according to guarantee conditions
Further information: chainflex® guarantee
