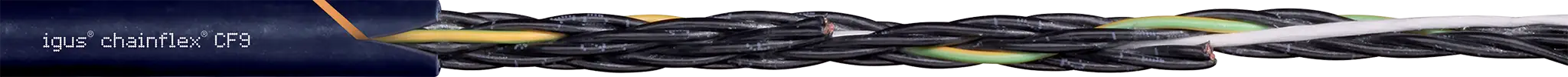

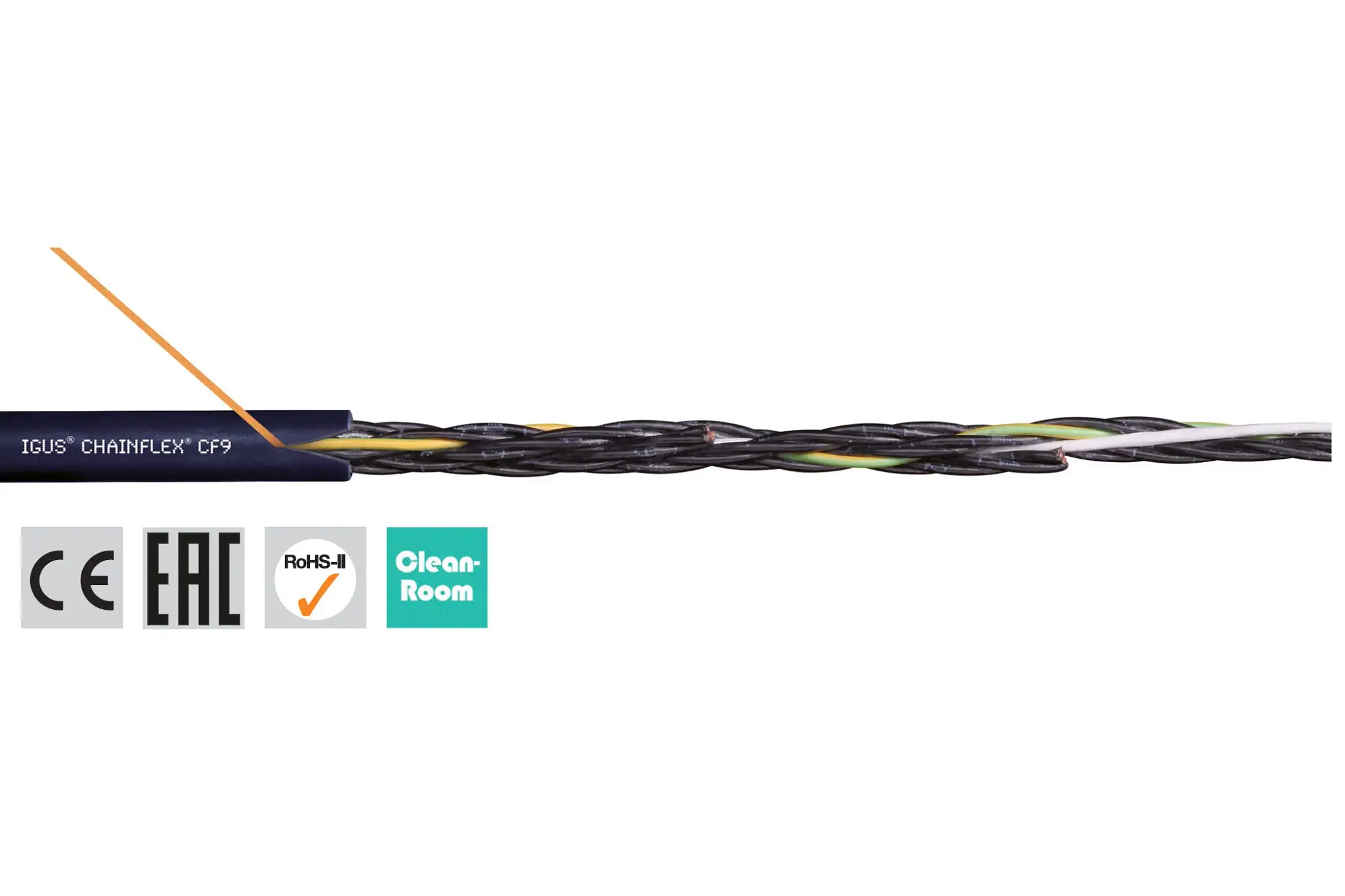

chainflex® control cable CF9

1 of 3

Requirements: For heaviest duty applications
Outer jacket: TPE
Coolant resistant
Low-temperature-flexible
Hydrolysis and microbe-resistant
Halogen-free
Silicone-free
UV-resistant
PVC-free
Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
CFRIP®
chainflex® class: 7.6.4.2

Item no.

CF9.02.02

formerly: CF9-02-02

Number of cores and conductor nominal cross section

2 x 24 AWG (0.25)

Outer diameter (d) max. [in]

Typical application areas

For heaviest duty applications
Almost unlimited resistance to oil, also with bio-oils
Indoor and outdoor applications, UV resistant
Unsupported travel distances and up to 400 m and more for gliding applications
Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, ship to shore, outdoor cranes, low-temperature applications

Guaranteed service life for this series according to guarantee conditions
Further information: chainflex® guarantee
