New drylin E electric motor products

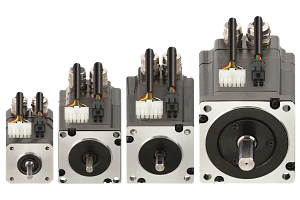

Stepper motors IP65 with brake

• Stepper motors for applications in damp areas
• With integrated brake
• In installation sizes NEMA 17, 23, 24, 34
• With 1m connection cable and inexpensive Molex connectors

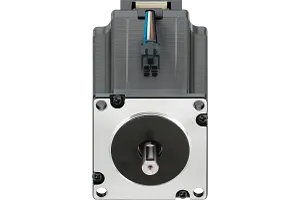

Powerful stepper motors with encoder

• Stepper motors in installation size L
• 38% more powerful compared to motors with installation length M
• In installation sizes NEMA 17, 23, 24
• With 0.3m connection wires and inexpensive JST and Molex connectors

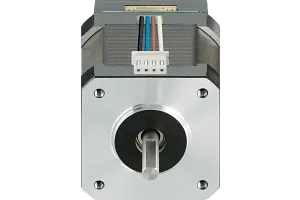

Stepper motors with 24V encoder

• Encoder compatible with Siemens, Beckhoff and B&R
• As NEMA 17 stepper and lead screw stepper motor
• 480% higher supply voltage
• With 0.3m connection wires and inexpensive JST connector

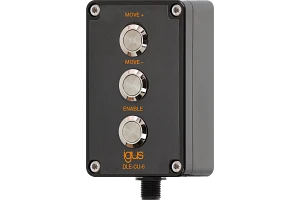

Control unit for jog mode

• Extension of the control unit product range
• Suitable for the igus motor control systems D1, D5/6, D7, 8, 9
• The motor control system is enabled by means of an enable switch and moved in left-right rotation with two buttons.

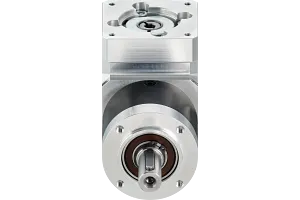

Angular gearbox for confined installation spaces

• For space-saving superstructures
• Suitable for igus stepper and EC/BLDC motors
• Suitable for frame sizes NEMA 23, 24, 34
• Up to 150% reduction in installation space compared to straight gearboxes
• Six different reduction ratios

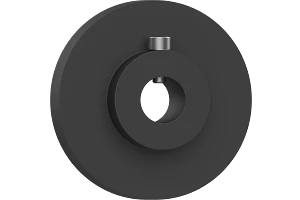

Handwheels for double shaft motors

• Four different versions for shafts with D-cut (5 / 6.35 / 8 / 14mm)
• Manual setting of the reference point instead of using a reference switch
• 400% cheaper than electrical reference/homing runs

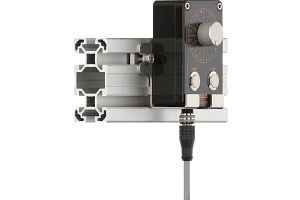

Stainless steel holder for control units

• Stainless steel bracket suitable for our control units
• Quick attachment and removal of the control units
• Suitable for many machine construction profiles
• Stainless, durable and recyclable

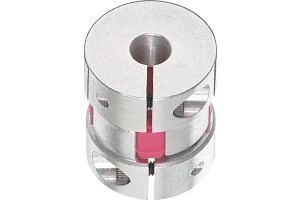

Claw coupling with round axis clamp

• Three new claw couplings
• Dampening, equalising power transmission, hollow coupling for shaft length compensation
• 50% saving in assembly time thanks to shaft length equalisation
• Reusable and durable

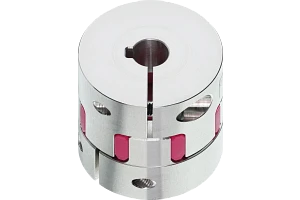

Claw coupling with feather key groove

• Two new claw couplings with feather key groove
• With round axis clamp and feather key groove
• Dampening, equalising power transmission, hollow coupling for shaft length compensation
• Extension of the standardised coupling series
• 50% saving in assembly time thanks to shaft length equalisation

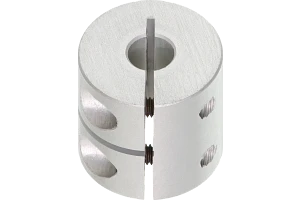

Shaft couplings

• Four new shaft couplings
• Coupling for radial and axial force absorption
• Cost-effective due to one-piece design (50% cheaper than claw couplings)
• Simple alignment via dowel pins, without bottom clamps

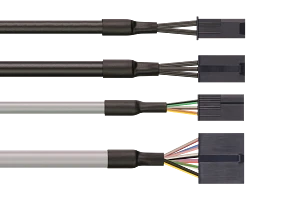

Motor connection cables in 20 metres

• Product expansion with 15 new cables in 20 metre lengths
• Consisting of chainflex cable with connector plug and open cable end
• 30% longer connection paths possible
• Durable, flame-retardant, silicone-free

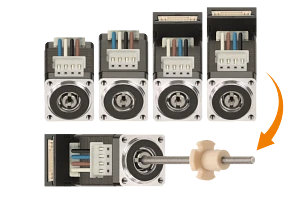

Lead screw motors in installation size NEMA 8

• Space-saving drive solution with only 20mm flange dimension
• Cost reduction of a machine due to smaller installation space and lightweight
• 30% installation space saving compared to installation size NEMA 11
• CE according to ROHS

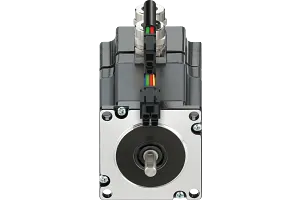

Stepper motors with encoder in IP65

• Stepper motor series with encoder for humid environments from 0.5-5.9Nm
• Direct with 1m connection cable and low-cost Molex connector
• 12% gain in overall length compared to NEMA 17 with metric connector
• CE according to ROHS

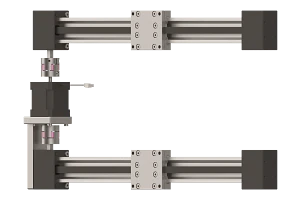

Double axes with stepper motors

• Space-saving drive solution with high torque absorption
• Predefined double axes in four different sizes
• 50% installation space saving compared to externally assembled motor
• Exchange bearing available

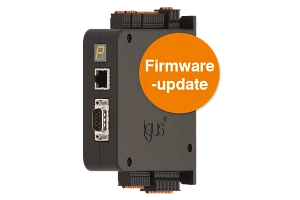

D1 firmware update

• 11 new improvements / functions for automation
• Free update for every D1
• Faster commissioning thanks to commissioning tips in the GUI
• Digital product with unlimited multiple use

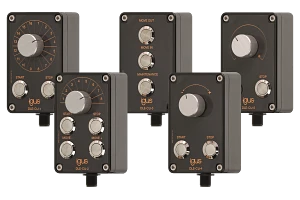

Control units for the D1 motor control system

• Simple operation of automation sequences
• Fast commissioning thanks to interaction between D1 and control unit
• 80% time saving thanks to prefabricated control unit
• Reusable and durable

Order stepper motors, DC motors, EC/BLDC motors, control systems, gearboxes and more directly online.

Find the right motor for your application: simply enter your requirements and receive suitable suggestions.

Do you have any questions about one of our products or would you like to make an inquiry? Set up a live video call with our experts!
