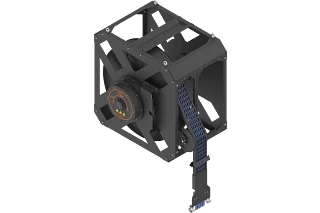

e-spool® theatre HD30
igus® is now expanding the existing product range with travel lengths of 10 and 15 metres to include a further 21-metre variant. This is achieved with the twisterband TBHD30 and can still be operated with the redundant spring system for safe retraction.

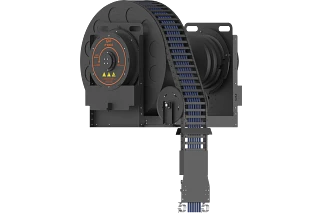

e-spool® theatre HD42
Thanks to the use of the larger twisterband TBHD42, more cables and larger diameters can be moved over travels of 10 and 15 metres. This increased capacity of the system means that more complex and extensive applications can be realised.

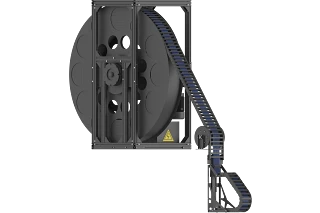

Design study: e-spool® theatre HD42e
The new standard for up to 40 meters travel, developed in accordance with DIN EN 17206 and DGUV principle 315-390. Equipped with a powerful motor and intelligent control system, the e-spool® HD42e offers higher fill weights and a modular system that enables easy adaptation and expansion.

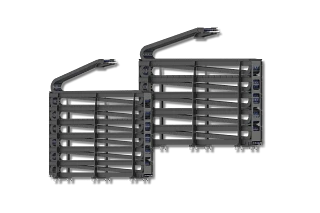

Design study: zig-zag E4.56
Standardized zig-zag guide concept with the e-chain® E4.56 for vertical travels of up to 40m. The tried-and-tested system was designed for use on different shaft end supports and in accordance with DIN EN 17206 and DGUV principle 315-390.

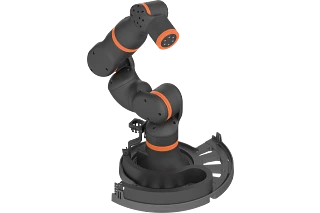

Polymer rotation module ReBeL-Twist
The new polymer rotation module is designed to fit axis 1 of the ReBeL and Universal Robot UR10e and enables simple integration.

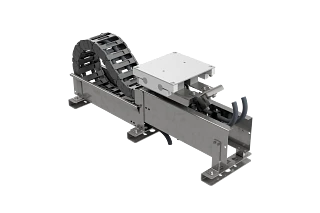

Cost-effective, durable and easy to install
The steel guide trough ST200 sets new standards in the guidance of energy chains, especially for the common rol e-chains of the 2828R, 3838R, 4040R and 5050R series. The system was developed for travels of up to 200m and offers you a cost-effective solution without an additional glide bar and with simple installation.
With our newsletter you will no longer miss any news from igus. Stay up to date regarding our company and motion plastics. Be the first to discover new products, exciting applications, current laboratory reports and much more.

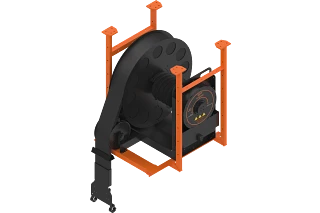

Developed for theatre and stage use in accordance with DIN EN 17206 and DGUV principle 315-390. Since last year, it has become an indispensable standard in theatre and stage technology. A further, more compact size with a travel of 10 meters and the new, optional accessories (ratchet, brake and tethering brackets for ceiling installation) now round off the product range. The extended length of the chain can be individually positioned using the ratchet. The brake ensures controlled winding. The connection brackets help when installing under the customer structure.
.

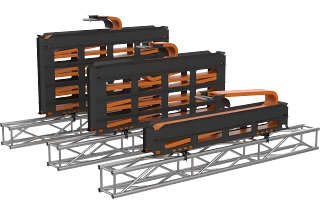

Lightweight and cost-effective
All the advantages of an e-chain® with an innovative guide concept for travels of up to 10 meters. The system was designed for use on different shaft end supports and in accordance with DIN EN 17206 and DGUV principle 315-390. The current system length is 2.16 meters. Different chain widths are possible, inner widths from 075 to 150mm are available.

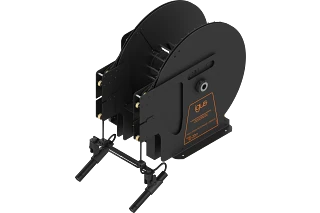

The e-spool® microphone fills a gap in the field of sound technology and is particularly versatile thanks to its compact size and lightweight design. The use of the twisterband eliminates the need for a slip ring. This ensures uninterrupted sound transmission over an extension length of 30 meters. With the e-spool microphone stereo, two cables are run in parallel so that two microphones can be connected. Both systems are supplied complete with motor and control system, the e-spool® microphone stereo additionally with microphone rail for two microphones.
Together with the new retrofit mounting consoles, the e-loop® is a ready-to-connect energy supply system for land drilling rigs. The standardized consoles for easy connection of the moving end and fixed end of the e-loop® ELP.300 to standard top drive models complete the e-loop® product range.

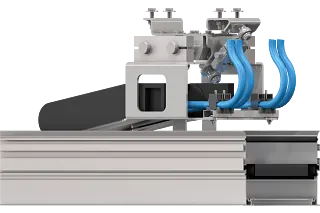

The new igus® standard for support plates and floating moving ends with identical hole pattern and same attachment height for an even more installation-friendly connection of the e-chain system® to the moving end The system is supplied with an integrated holder for the strain relief and can be equipped with EC.P push/pull force monitoring.

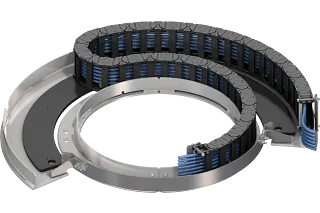

Simply turn safely
A standardized guide trough for different chain widths including preparation for smart plastics end position control
Dimensions [in mm]
Outer diameter: 600
Inner diameter: 300
System height: 75 to 165

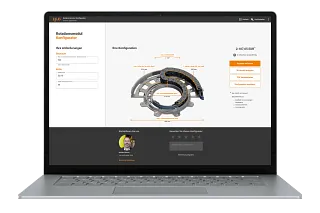

Occasionally, the numerous standards do not fit into the available installation space and a custom rotating energy supply in a different installation size has to be elaborately designed. Configuring the perfect rotating energy supply system for your application is easy and takes just a few seconds - now possible with the new Rotation Module Configurator. With an outer diameter of 200mm to 2,500mm, you receive a finished standard in your desired size, which you can order directly online.

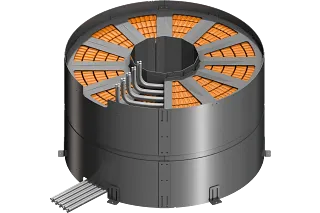

With five triflex® chains installed, the new TRM offers space for a variety of cables and other media. The compact type (outer diameter 1,300mm, installation height less than 1m) allows for the safe realisation of a 1,800° rotation angle.

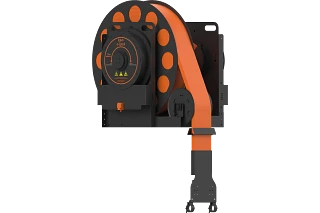

e-spool® energy chain system - For theatres and stages
Discover the energy chain system for theatres and stages based on DIN EN 17206 and DGUV principle 315-390. e-spool® is a cable guide with automatic retraction by spring tension. A new tension-optimized e-chain® is guided on a drum and ensures the correct length and tension of the energy supply system thanks to an integrated retaining spring. The twisterband connects the drum to the shaft block, which serves as an interface to the permanently installed cable.
Dimensions [in mm]
Height: 1,050
Width: 950
Depth: 950

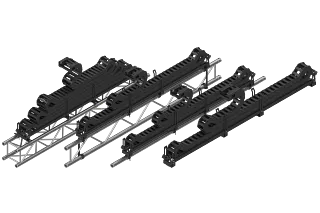

Up to 15 meters high on trusses
The new standard in theatre and stage technology scores points with its significantly reduced weight on the trusses, modular design and travels of 5-15 meters. The package includes fixings for trusses, the support plate at the moving end and the optional safety package in accordance with DIN EN 17206 and DGUV principle 315-390 to round off the new system.
Dimensions [in mm]
Length: 2,000
Width: 410
Height: 620 to 1,350
