Cleanroom e-chains® | e-skin® Soft

With softer material, small installation height <200mm

Benefits

  • Compact, modular design
  • Flexible filling
  • Reclosable opening mechanism: easy filling with "zipper" function
  • Especially suitable for cleanrooms
  • Can be shortened as necessary
  • KMA mounting bracket, optionally with strain relief
  • Mounting brackets to be sealed tightly by means of PU block
  • Quiet 32dBA

Typical application areas: cleanroom applications with compact installation spaces, short travels, semi-conductor production, LCD/LED panel production

e-chain Contact an Expert

e-skin® corrugated tubes are available in 3 versions:

e-skin® SK
For unsupported lengths up to 2m and installation space from 250mm

e-skin SK corrugated tube
To the product

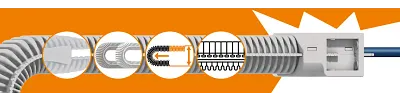

e-skin® soft SKS
For unsupported length up to 1.3m and installation space from 150mm

e-skin® soft corrugated tube
To the product

e-skin® Hybrid SKY
For unsupported length up to 1.4mm and installation space from 200mm

e-skin® Hybrid corrugated tube

Interior separation configurator

Configure now

Technical drawings

e-skin hybrid
e-skin hybrid

Series SKS28

click to enlarge

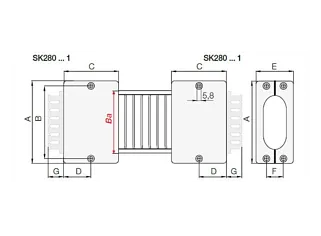

e-skin brackets
e-skin brackets

Mounting Bracket

click to enlarge

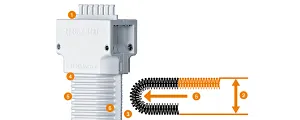

Technical details

1.  Mounting brackets: structurally stable, with integrated strain relief
2.  Small installation space: small bend radii
3.  Unsupported application due to stop-dogs on the upper shell of the e-skin®
4.  Cleanroom ISO Class 1: virtually no wear or abrasion
5.  Cable-friendly: defined minimum bend radius
6.  Easy assembly: upper and lower shell can be opened for easy filling

e-skin®

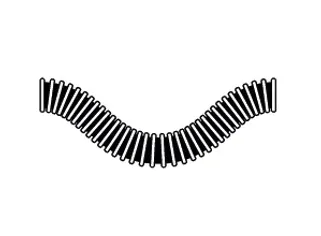

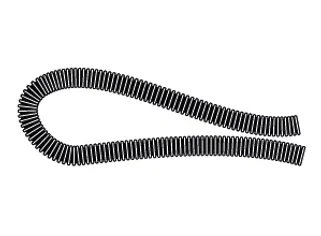

Corrugated hoses have the same bend radius along their entire length

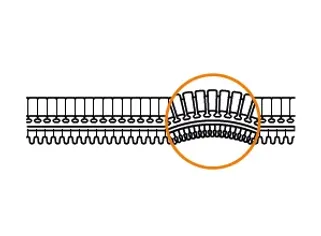

The e-skin® consists of two shells (upper/lower shell). The shells can be configured in order to define the nature of the movement involved


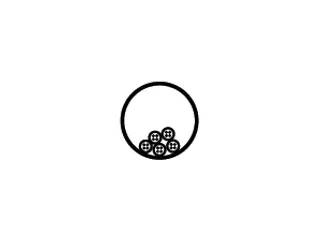

The interior of corrugated tubes cannot be divided into sections

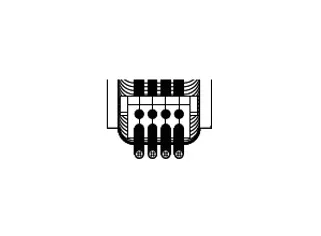

e-skin® can be fitted with interior separation system

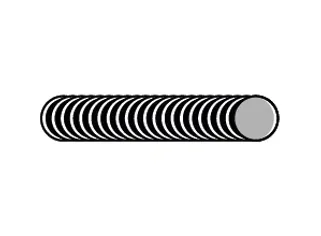

Corrugated hoses have little or no inherent rigidity.

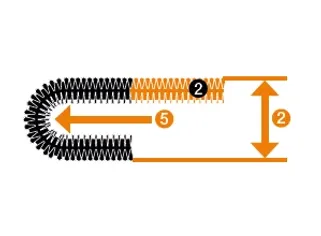

e-skin® is suitable for short unsupported lengths in a small installation space (2) and has a defined bend radius (5)

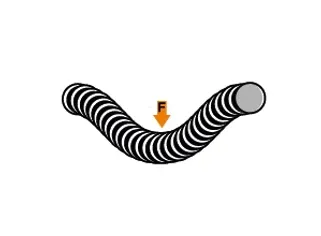

Very little if any stability in respect of forces acting on the sides

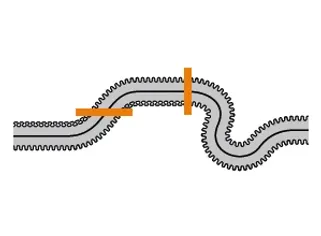

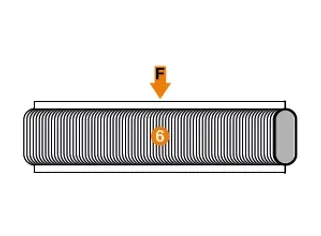

Lateral stability thanks to the oval (6) geometry of the e-skin®

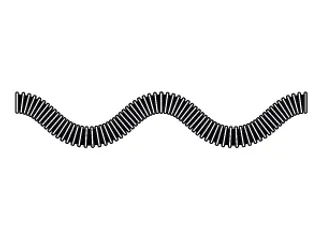

Corrugated hoses cannot be used unsupported


e-skin® supports itself and can be used for short, unsupported lengths


Corrugated hoses for dynamic applications cannot be opened


e-skin® can be opened on its outer radius and filled quickly

Quality from the igus® cleanroom cleanroom energy standard laboratory

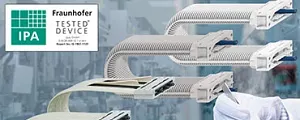

IPA classification

Corrugated tube e-skin® is certified according to the classification ISO class by IPA Fraunhofer Institute:

Tested at v = 0.5m/s, 1m/s and 2m/s all with ISO Class 1

Learn more

Tested in the igus® test laboratory for use in the real world

Continuous test
Continuous test

Continuous test

Developed for cleanroom applications, the e-skin® SK has been tested under real conditions with 6.4 million double strokes at 3m/s in the laboratory.

Bending test
Bending test

Bending test

The standard bending tests show how flexible the e-skin® soft is. It only bends, even under loads that would break other energy chains.

Noise level measurement
Noise level measurement

Noise level measurement

This test shows how quiet 'e-skin' corrugated tubes and 'e-skin® flat' cleanroom cables are. Compared to flat ribbon cables of competitors, the noise level of the e-skin® flat is only 29dB(A).
