cleanroom cable carrier | e-skin® SK

An alternative to conventional corrugated hoses

Advantages of e-skin®

The e-skin is a hose consisting of an upper and lower shell that is fully closed when plugged together. It consists of the specially developed polymer material igumid SK. The simple and re-closable opening mechanism enables easy maintenance and inspection of the installed cables. Operating temperature +10°C / +50°C.

Typical branches of industry and applications: Display and semiconductor manufacturing, pick & place applications, printers, medical technology and all machines where corrugated pipes are used, display and semiconductor manufacturing

Contact a cleanroom expert

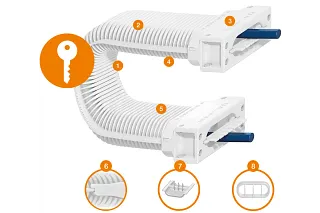

Corrugated tube e-skin® benefits

1. cleanroom ISO class 1.
Virtually no wear and abrasion

2. two-part corrugated tube.
Consisting of upper and lower shell

3. attachment from any side.
KMA-Mounting bracket, optionally with strain relief

4. oval geometry.
Protection against unintentional lateral movement

5. completely closed.
Dust and water protected

6. re-closable opening mechanism.
Opening and closing by zip opening principle

7. optional vertical separation.
Consisting of individual dividers and shelves

8. minimization of abrasion
With the new inner divider made of tribo-optimized iglidur® material, wear can be reduced by up to 80 %

e-skin SK | For unsupported lengths of up to 2.0m and installation space starting at 250mm

Series SK28

inner height hi : 28 mm
inner width Bi: 68 mm
bend radius R: 055 mm
pitch: 112 mm

Shop SK28

Series SK40

inner height hi : 38 mm
inner width Bi: 85 mm
bend radius R: 100 mm
pitch: 112 mm

Shop SK40

e-skin soft SKS | For unsupported lengths of up to 1.3m and installation space starting at 150mm

SKS20

inner height hi : 20 mm
inner width Bi: 33 mm
bend radius R: 055 mm
pitch: 112 mm

Shop SKS20

SKS24

inner height hi : 24 mm
inner width Bi: 48 mm
bend radius R: 055 mm
pitch: 112 mm

Shop SKS24

SKS28

inner height hi : 28 mm
inner width Bi: 68 mm
bend radius R: 055 mm
pitch: 112 mm

Shop SKS28

SKS40

inner height hi : 38 mm
inner width Bi: 85 mm
bend radius R: 100 mm
pitch: 112 mm

Shop SKS40

e-skin Hybrid SKY | For unsupported length of up to 1.4m and installation space starting at 200mm

SKY28

inner height hi : 28 mm
inner width Bi: 68 mm
bend radius R: 055 mm
pitch: 112 mm

Shop SKY28

SKY40

inner height hi : 38 mm
inner width Bi: 85 mm
bend radius R: 100 mm
pitch: 112 mm

Shop SKY40

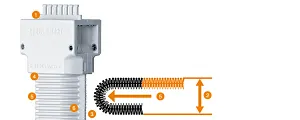

Technical details

1.  Mounting brackets: structurally stable, with integrated strain relief
2.  Small installation space: small bend radii
3.  Unsupported application due to stop-dogs on the upper shell of the e-skin®
4.  Cleanroom ISO Class 1: virtually no wear or abrasion
5.  Cable-friendly: defined minimum bend radius
6.  Easy assembly: upper and lower shell can be opened for easy filling

Technical drawings

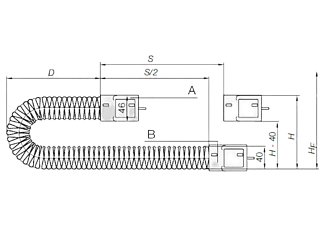

Series SK28

click to enlarge

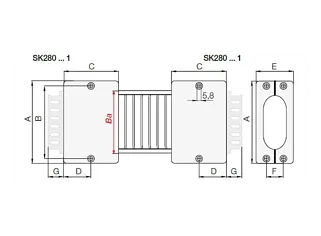

Mounting Bracket

click to enlarge

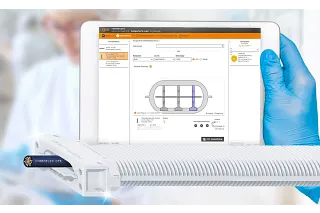

e-skin® interior separation configurator

Interior separation configurator for the e-skin®

With the interior separation configurator for the e-skin® corrugated tubes, you can create filling variants in just a few seconds and configure complete e-skin® corrugated tubes with interior separation and mounting brackets.

Easy to fit
Avoidance of filling errors due to integrated filling guidance
Automatic creation of a parts list and drawing with dimensioning
Easy to submit a request and order the complete corrugated tube with chainflex® cables and interior separations in the desired configuration.

Configure the interior separation now

Tested in the igus® test laboratory for use in the real world

Continuous test

Developed for cleanroom applications, the e-skin® SK has been tested under real conditions with 6.4 million double strokes at 3m/s in the laboratory.

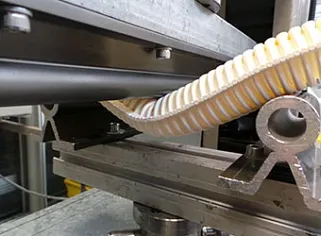

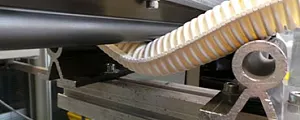

Bending test

The standard bending tests show how flexible the e-skin® soft is. It only bends, even under loads that would break other energy chains.

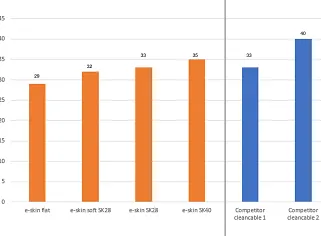

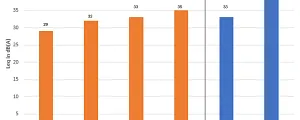

Noise level measurement

This test shows how quiet 'e-skin' corrugated tubes and 'e-skin® flat' cleanroom cables are. Compared to flat ribbon cables of competitors, the noise level of the e-skin® flat is only 29dB(A).

corrugated tube e-skin® compared to other cleanroom products?

⬤⬤⬤⬤⬤ most suitable | ⬤ rather less suitable | Yes | X No

	e-skin SK corrugated tube	corrugated tube e-skin® SKS	corrugated tube e-skin® SKY	e-skin® flat & CFCLEAN	Energy chain E6/E6.1

Class 1 according to EN ISO 14644-1	✔	✔	✔	✔	✔
Modular design	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤
Components individually interchangeable	✔	✔	✔	✔	✔
Quick filling, openable	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
Fast delivery	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
Easy maintenance	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤
Available from stock	✔	✔	✔	✔	✔
Can be shortened	✔	✔	✔	✔	✔
Can be widened	X	X	X	✔	✔
High productivity rate	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⭘⭘
No minimum order quantity	✔	✔	✔	✔	✔
Cost-effective	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤
Suitable for unsupported applications	⬤⬤⬤⭘⭘	⬤⬤⭘⭘⭘	⬤⬤⭘⭘⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
For high dynamics	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤
Space-saving	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘
Fill weight	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⭘⭘⭘	⬤⬤⬤⬤⬤
36-month guarantee	✔	✔	✔	✔	✔
Saves resources	✔	✔	✔	✔	✔
Everything from one source (chain, cable, connector)	✔	✔	✔	✔	✔
Products also available individually	✔	✔	✔	✔	✔
Quiet, smooth operation	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘
Online calculation of service life	X	X	X	X	✔
Online interior separation configurator	✔	✔	✔	X	✔
Suitable for the following industries	Electrical manufacturing 3C industries Dispenser Glass cutting Semiconductor industry FPD production Microelectronics AOI	Electrical manufacturing 3C industries Dispenser Glass cutting Semiconductor industry FPD production Microelectronics AOI	Electrical manufacturing 3C industries Dispenser Glass cutting Semiconductor industry FPD production Microelectronics AOI	Electrical manufacturing 3C industries Bonding Dispenser Semiconductor industry FPD production Medical technology Microelectronics AOI	Electrical manufacturing Semiconductor industry FPD production Microelectronics Panel robots Packaging Plotter Medical technology
	Buy now	Buy now	Buy now	Buy now	Buy now

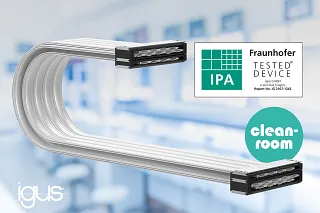

Flat cable routing system e-skin® flat

Flat cable routing system e-skin® flat with stranded structure CFCLEAN for cable routing in display and semiconductor production and in the production of LCD/LED panels:

► Modular and compact design
► Quick cable replacement
► Cleanroom-compatible in accordance with IPA ISO Class 1
► High reliability thanks to coordinated CFCLEAN cable assemblies
► Available from stock

Learn more
