When do i need an e-skin® for my machine?

LCD, LED, OLED, semiconductor applications with cleanroom requirements. As soon as you need a closed energy supply system for a cleanroom application.

Homepages
Cable Carriers

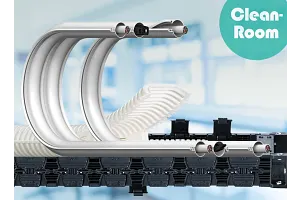

e-skin® cleanroom energy chains

e-skin® corrugated tube for cleanroom energy standard

Q: Has the e-skin® been approved for cleanroom applications?

Yes, we tested the SK28 , SKS28 , and SKF12 series in the Fraunhofer IPA test centre for semiconductor devices on the basis of ISO Class 14644-1 and obtained ISO Class 1 certification for all products.

Guide cables in cleanrooms with e-skin® safely and abrasion-resistant

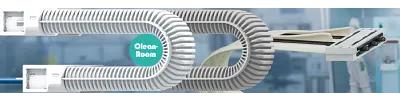

Corrugated e-skin® tube is available in an enclosed version and a version with chambers that can be opened individually. This flexibility is a unique innovation on the market so far. Furthermore, e-skin has sufficient inherent rigidity and a defined bend radius (55 to 100mm). The oval geometry ensures lateral stability. Short unsupported lengths are possible, even in small installation spaces. Conventional corrugated hoses do not offer this possibility. In addition, the energy supply is very quiet. Its noise level is only 29dB(A), 5dB(A) lower than that of conventional clean cables.

Benefits:

Abrasion-resistant
IPA classification ISO class 1
Compact and modular design
Easy to open and flexible filling
Resealable opening mechanism

To keep rooms free from particles, all machine parts - the energy supplies too - have to be abrasion-resistant. With the e-skin® corrugated tube, systems are supplied with data, media and energy without unwanted particles contaminating the air.

Contact an igus® expert for more information

e-skin® corrugated tubes are available in 3 versions:

e-skin® SK
For unsupported lengths up to 2m and installation space from 250mm

To the product

e-skin® soft SKS
For unsupported length up to 1.3m and installation space from 150mm

To the product

e-skin® Hybrid SKY
For unsupported length up to 1.4mm and installation space from 200mm

Interior separation configurator

Configure now

Quality from the igus® cleanroom cleanroom energy standard laboratory

IPA classification

Corrugated tube e-skin® is certified according to the classification ISO class by IPA Fraunhofer Institute:

Tested at v = 0.5m/s, 1m/s and 2m/s all with ISO Class 1

Learn more

Tested in the igus® test laboratory for use in the real world

Continuous test

Developed for cleanroom applications, the e-skin® SK has been tested under real conditions with 6.4 million double strokes at 3m/s in the laboratory.

Bending test

The standard bending tests show how flexible the e-skin® soft is. It only bends, even under loads that would break other energy chains.

Noise level measurement

This test shows how quiet 'e-skin' corrugated tubes and 'e-skin® flat' cleanroom cables are. Compared to flat ribbon cables of competitors, the noise level of the e-skin® flat is only 29dB(A).

Frequently Asked Questions

Only unsupported but please contact us and we will find a solution!

Of course, igus® is supplier of chains, cables and readychain systems. Talk to us!

LCD, LED, OLED, semiconductor applications with cleanroom requirements.
As soon as you need a closed energy supply system for a cleanroom application.

Yes, we tested the SK28, SKS28, and SKF12series in the Fraunhofer IPA test centre for semiconductor devices on the basis of ISO Class 14644-1 and obtained ISO Class 1 certification for all products.

With the new inner separation made of tribo-optimized iglidur® material, the wear can be reduced by up to 80%.

Interior separation configurator for the e-skin®, you can create filling variants in just a few seconds and configure complete e-skin corrugated tubes with interior separation and mounting brackets..

The simple and reclosable opening mechanism enables easy maintenance and inspection of the installed cables.

The e-skin® is a corrugated tube consisting of an upper and lower shell that form a complete enclosure when connected together..

Real-world examples

e-skin corrugated tube in the production of printed circuit boards

PCB production

An abrasion-resistant e-skin corrugated tube from igus is used in machines for the production of printed circuit boards and semiconductors. Airborne-dust is no longer a problem with the e-skin.

Find out more

Lifting systems

The e-skin® corrugated tube is used in lifting systems in the pharmaceutical sector or in biotechnology. It is robust, modular and can be shortened as necessary.

Find out more

Adhesive dispenser for camera modules

The e-skin® corrugated tube convinced the engineers at Mingseal. The unique openable corrugated tube for cleanrooms, which consists of an upper and lower shell, united the engineers' requirements with regard to accessibility, inherent rigidity, compactness and, of course, the highest cleanroom suitability according to ISO Class 1. In future, the compact e-skin® corrugated tube will be installed in new machines.
