drylin® Q square rails

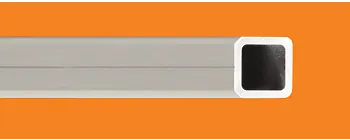

• Very light, hollow aluminum profile
• Torque resistant

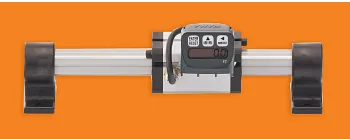

• Mounting accessories available

• Adjustable clearance
• Various mounting options
• Optional hand clamp

• Easy assembly
• Torque absorption: 3Nm or 10Nm
• Maintenance-free

• Plastic end supports
• Adapter kit for grippers & sensors
• Adapters for E2 micro e-chain®

Create your own modular linear guide system with our easy-to-use configurator. In just 4 simple steps, you can design the exact linear system your application calls for and add it to your cart directly from the configurator.

This configurator makes choosing a linear actuator simpler than ever. Simply define the application parameters, select the desired product, and you’re done. The configurator provides service life and maximum load calculations for your application.

With the new hybrid rolling bearing configurator, you can easily determine the best bearing for your system. The configurator provides service life calculations and required drive force for the bearings, taking the guesswork out of the process.
