drylin linear technology news

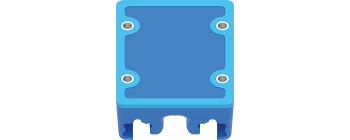

Compact carriage in hygienic design
drylin W hygienic design carriages offer as little space as possible for bacteria and viruses. Consistent compliance with the EHEDG production guidelines means that the carriages can be rinsed without any problems, there are no dead spaces and slopes, and radii prevent dirt particles and germs from adhering.

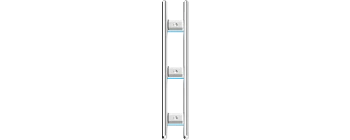

Bolted stainless steel rail in hygienic design
In addition to our new installation size, we are optimising our modular system. The new drylin W rail for the Zone 1 spray area is a variant of the stainless steel profiles with bolted support elements.

Carriage zinc die-casting
Compact drylin W linear plain bearing can be installed inside the housing. The design of the linear system thus saves up to 25% of the overall width. After installing on 80mm wide aluminium construction profiles, the system does not protrude a millimetre to the side.

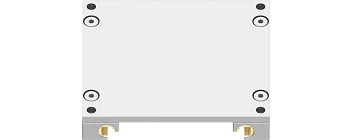

Carriage AL
The compact drylin W carriage is also available in an aluminium version. The carriage is available in three carriage lengths (60/80/100mm) and is 100% lubrication-free.

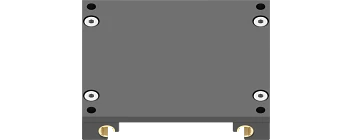

{{anchor:null}}Carriage anti-reflective
The carriage has an anti-reflective coating, which ensures improved visibility and less glare. The system provides a flush finish that is almost invisible in automation cells. The discreet appearance reduces the risk of collision.

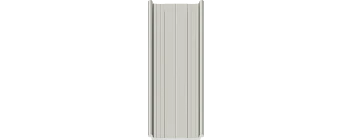

Linear rail in installation size 06-70
The new WS-06-70 rail width offers designers a high degree of design flexibility, as it is ideally suited to standard 80mm wide aluminium construction profiles. Extremely flat design, discreet appearance, fast connection plus the variety of the drylin W linear construction kit for all desired functions.

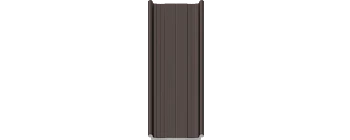

Linear rail in installation size 06-70 Anti-Reflex
The new rail width in installation size 06-70 is also available with an anti-reflective coating. These are particularly suitable for small installation spaces. We fulfil the customer's wish for greater compatibility with standard 80mm construction profiles. For simple installation to realise automation tasks.

Carriage for curved rail convex and concave
Curved rail profiles are a major challenge in small installation spaces. This is because less space means a tighter bend radius for the rail profiles and even more flexible adaptation of the carriages to the curved profiles. Thanks to the new double rail in installation size 06, round and ergonomic adjustments are now also possible for smaller installation spaces.

Carriages for curved rail semi and full circle
The new curved guides in size 06 are available as a semi-circle. This allows you to achieve tight radii of up to 100mm when travelling around curves thanks to the flexible three-point bearing of the carriage. This is particularly useful when operator ergonomics are required, e.g. monitors and control elements are guided in a radius to ensure easy and safe accessibility.

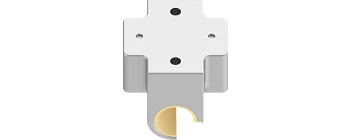

Pre-loaded hybrid roller bearings
drylin W hybrid roller bearings are often used for manual adjustments because they combine the smooth running of polymer rollers with robust plain bearing technology for absorbing lateral forces. And all this without a drop of lubrication in the system.

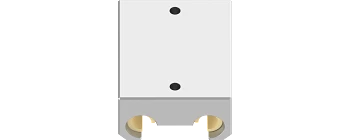

Slim Line linear housing in installation size 06
The drylin W Slim Line linear housings are available individually for installation in an individual carriage, extremely lightweight made of aluminium with internal mounting holes.

Slim Line carriage in installation size 06
Compact drylin W linear plain bearings can be installed inside the housing. The design of the linear system thus saves up to 15% of the overall width. When mounted on 80mm wide aluminium construction profiles, the system does not protrude a millimetre to the side.

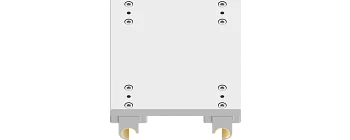

Linear carriage with pre-loaded hybrid roller bearings
The WWH roller carriage combines four WJRM-71 bearings with a robust, corrosion-resistant aluminium plate.Possible areas of application are, for example, seat adjustments or steps that are not subjected to load when in motion, but have to bear high loads when stationary.

Pillow block made from zinc die-casting

Save up to 50% in costs by manufacturing the linear housing with zinc die-casting. The pillow block can be replaced on the rail without dismantling. Existing linear carriages in installation size 10 can be retrofitted at any time.

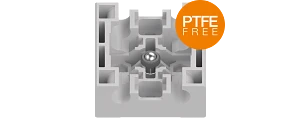

PTFE-free locking carriage
The drylin W linear guides with locking carriage combine linear adjustment with stop at defined locking points in installation size 1030.

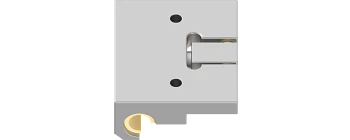

PTFE-free miniature locking carriage
The drylin W linear guides with locking carriages combine linear adjustment with hold at defined locking points. The very lightweight design of the clean and hygienic components make them the ideal choice for demanding environments e.g. railway technology or aircraft interiors.

Miniature carriage FDA-compliant
The FDA-compliant and corrosion-free carriage in installation size 0620 is made of high-quality stainless steel. With compact connection dimensions that are identical to the miniature recirculating ball bearing of installation size 15, it offers a wide range of possible applications. Ideal for applications in the food, medical and pharmaceutical industries.

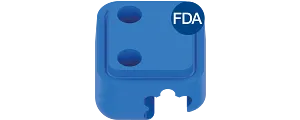

Single bearings in hygienic design
drylin W single bearings in accordance with Hygienic Design guidelines for flexible construction in food technology. Fast, residue-free cleaning thanks to large rinsing grooves and rounded corners and edges.

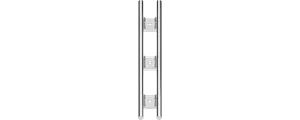

Double rail 0620 stainless steel{{anchor:null}}
{{/anchor}}The smallest drylin W double rail made of stainless steel for special requirements: water contact, cleaning, chemicals, temperatures, extremely robust and resistant, the new rails are made of 316 stainless steel (AISI 316 ti).

Miniature carriage made of stainless steel
The smallest installation size is now also available in stainless steel. It is particularly suitable for applications that require high corrosion and media resistance. The liners on the high-performance polymer iglidur J guarantee high running performance on stainless steel rails.

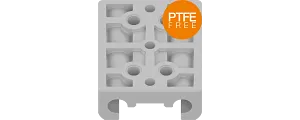

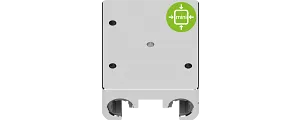

Miniature carriage PFAS/PTFE-free
Weighing less than 10 grams, the WWP-06-20-04 is the lightest slide in the drylin product range. The small econ drylin W carriage with a compact type of 32x40x14mm impresses wherever installation space and lightweight construction are required at a cost-effective price.

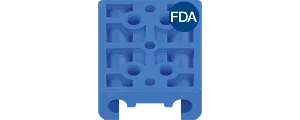

Miniature econ carriages FDA-compliant
Extremely lightweight and compact carriages made of the iglidur polymer A230 are now also available to match the new drylin W double rail WS-06-20-ES made of stainless steel. The carriage fulfils the conformity requirements for use in the food and pharmaceutical industries.

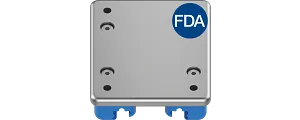

Pre-assembled carriage
Linear system based on hygienic design consisting of a pre-assembled carriage for drylin W stainless steel guides in installation size 1040, four Hygienic Design single bearings with flushable grooves on the running surfaces and stainless steel carriage plate for individual centre distance.

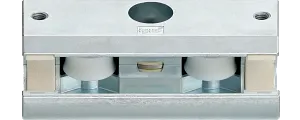

Tandem roller bearing
With the tandem roller bearing, double loads can be supported compared to the hybrid roller bearing with single roller. The integrated self-aligning bearing ensures even load absorption by the rollers.

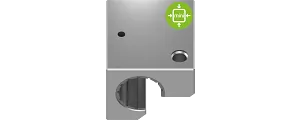

Compact linear housing bearings
Corrosion-free and robust. The new narrow drylin W linear housings made of stainless steel in four sizes. For all drylin W single and double rails in round, installation size Ø10-25mm.

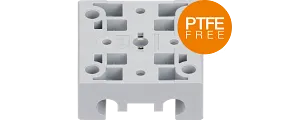

econ polymer carriage
The first solid plastic carriage PFAS free for the compact installation size 1030 of the linear construction kit drylin W. Simple assembly thanks to monobloc shape.

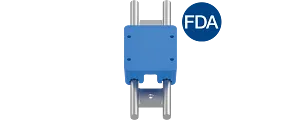

Hygienic design
The hygienic design is a clean system with FDA- and EU10/2011-compliant components. It is dimensionally identical to recirculating ball bearing guides and is particularly easy to clean.

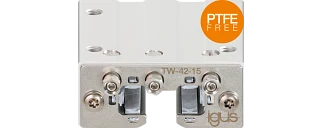

Anti-reflex telescopic rail PTFE-free
PTFE-free telescopic rails for stepless adjustment up to 2,000mm.

Telescopic rail PTFE free
The sliding elements are made of PTFE-free material iglidur® JGPF, which ensures smooth and quiet operation.

PFAS-free telescopic rail
drylin NT-35 telescopic rails can be extended to a length of 600mm absolutely quietly and without any lubrication.

Metal-free, PFAS-free telescopic extension
The lightest telescopic rail NTP-27, 125mm full extension, weighs just 45 grams. Equipped with smooth-running spring pretensioning elements, it is quick and easy to fit. The NTP polymer extension is now also available with PFAS-free components.

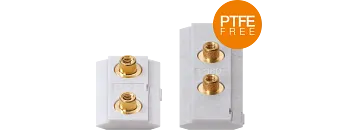

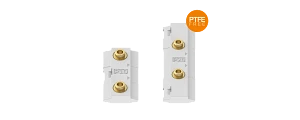

Prism carriage with machined end
In addition to its extremely flat design, the drylin NSV pre-load prism slide offers variable spring pre-loads. This allows users to define the desired displacement force and adjustment without any stick-slip effect.

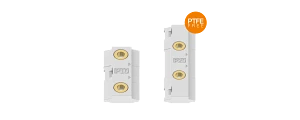

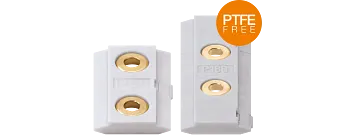

Prism carriage with hole
In addition to its extremely flat design, the drylin NSV pre-load prism slide offers variable spring pre-loads. This allows users to define the desired displacement force and adjustment without any stick-slip effect.
