Heavy duty rol e-chain® P4HD.56R
"Chains for cranes" next level:
We want a service life of 15 years for e-chain® systems - on every crane. This is our development goal and can also be found in the functional specifications for the new P4HD product range. New standards in container shipping are demanding more and more of energy chains used on STS cranes. igus,® the energy supply specialist, presents a new generation of extremely long-lasting rol e-chains® specially developed to meet these new challenges – the P4HD.56R.
For maximum service life with optimized design
The new heavy-duty rol e-chain® meets all the relevant requirements for container cranes of the next and next-but-one generations. Longer and longer travels, greater dynamics, short stress cycles, zero failures: in brief, this is what is demanded by the manufacturers of ship-to-shore container cranes for energy chains on the crane bridges. The new P4HD.56R fulfils these requirements - and offers maximum economic efficiency.
Tech up
- Developed for the coming generations of STS cranes
- Service life extended again (compared to P41.56R) + 50%

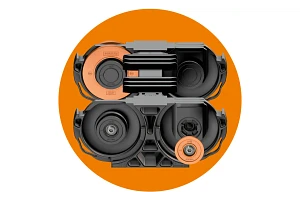

- Everything redesigned: rolling elements, side bands, joining links
- Integration of predictive maintenance sensors possible (i.Sense)
Cost down
- Low maintenance
- Minimized downtime when using i.Cee module (failure always means high costs)
- Retrofitting easy - guide troughs remain identical
- Predictive maintenance - ideal with the i.Sense add-on module
Proof
- In-house testing facility: for tests at up to 8m/s over a travel of 400 metres
- 50% longer expected service life compared to the proven P4.1 series
Sustainability
- 57% drive power, saving energy
- Have your e-chain® recycled at the end of its life cycle with the igus® chainge recycling program. No matter what manufacturer.
- igus supports the plastics circular economy and is investing in chemical recycling. From plastic waste to crude oil in 20 minutes.
"Chains for cranes®" next level:
we want a service life of 15 years for e-chain systems - on every crane. This is our development goal and can also be found in the functional specifications for the new P4HD product range. New standards in container shipping are demanding more and more of e-chains® used on STS cranes. igus, the energy supply specialist, presents a new generation of extremely long-lasting rol e-chains® specially developed to meet these new challenges – the P4HD.56R.
| Part No. | Inner height | Outer height | Inner width | Outer width | Bend radius | |
|---|---|---|---|---|---|---|
| P4HD.56R | 56 mm | 84 mm | 187 - 300 mm | 269,5 - 382,5 | 250/300/350mm | Submit an enquiry |

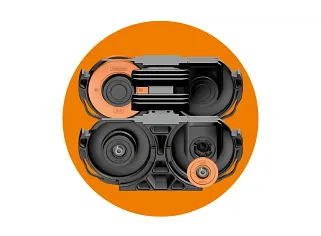

The revolution of the rol e-chain®

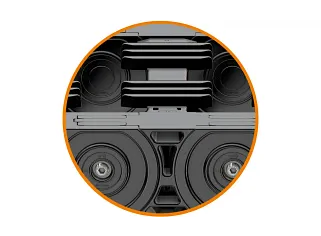

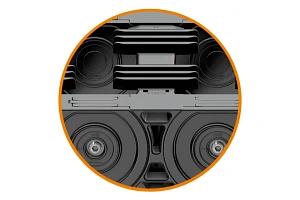

The roller energy chain has been the tried-and-tested energy supply for long travels for about 20 years. The successful design that characterizes all our linear e-chain® systems is supplemented by rollers made of stainless steel, which upgrade the e-chain® to an energy supply for heavy-duty applications. As the energy chain rolls and does not glide, it runs silently and with low vibration. The wear is significantly lower than with a design without rollers, and the power needed for the movement is also about 57% lower.

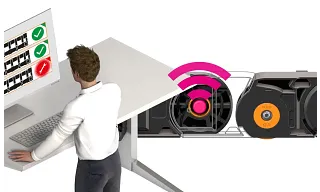

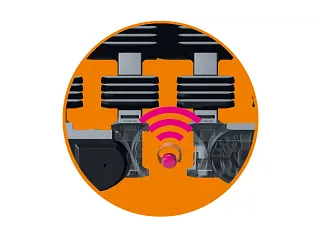

Additional feature: predictive maintenance with smart plastics

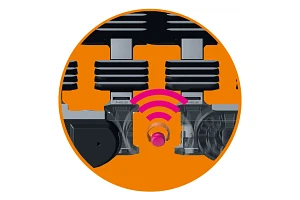

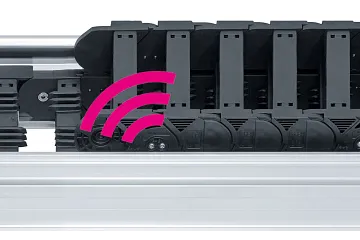

In the latest development stage of the igus rol e-chains, use of maintenance-free, tribo-polymer plain bearings in the connection of the e-chain links also considerably lengthens the service life. Optionally, the new P4HD can be equipped with smart monitoring sensors. A signal is issued from a defined wear limit to the igus i.Cee:plus communication module, with which maintenance can be planned in advance. The sensor is integrated into a standard side part of the chain, which does not lead to any restrictions in the usable inner width.
More information

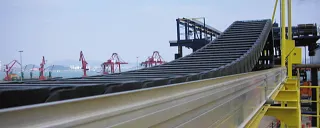

Further products for crane systems
Our energy chain systems have proven their reliability all over the world in ship-to-shore cranes, bulk cargo handling cranes, RTGs, RMGs, Goliath cranes, spreaders and reach stackers. They require very little maintenance, are robust, durable and quiet in use, while also being an alternative to busbars, festooning and motorized cable reels.
