C6 e-chain® system for cleanroom applications

Highest cleanroom suitability, hardly any abrasion & high strength

Abrasion-resistance is the most important parameter for e-chain® applications in cleanrooms. The C6 range of e-chains® sets the standards in this field. During testing, no abrasion can be measured when the new C6 cleanroom e-chain® is used, even under high loads. Additionally, this line of cable carriers is extremely quiet during operation and easy to install.

Typical application areas: Electrical manufacturing, semiconductor industry, FPD production, microelectronics, panel robots, packaging, plotters, medical technology

Contact a cleanroom specialist

Tech up

Optimized design without any measurable abrasion
For ISO Cleanroom Class 1 applications
High strength and stability due to robust double stop-dog system
Very quiet operation due to injection-molded dampening element
Side parts made of ESD material to prevent static charge

Cost down

Long service life due to low life cycle costs
Easy, cost-saving installation
Made of igumid ESD (side parts) and iglide® J (crossbars and interior separation) as standard

Proof

Abrasion/cable tests in the igus® laboratory. The iglide® J material produces 77% less abrasion*

Sustainability

Uses less resources due to long service life
Have your e-chain® recycled at the end of its life cycle with the igus® chainge® recycling program.

Product range:

Part No.	Inner height	Outer height	Inner width	Outer width	Bend radius	Pitch
C6.29.100.075.17	29mm	35mm	100mm	116mm	075mm	22mm
C6.53.172J.075.3	53mm	67mm	172mm	199mm	075mm	30mm

Free white paper: Energy supply systems for the cleanroom

In this white paper, wou will learn how the right energy guidance in the cleanroom

can increase plant effectiveness
generate greater output from the production lines
use energy supply systems more sustainably

Download white paper

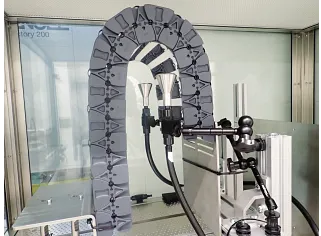

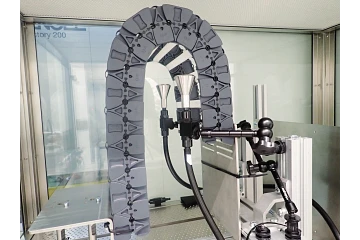

Tested in the igus® laboratory

Various sliding surfaces are tested and evaluated for abrasion.

Continuous cleanroom tests were performed in the IPA-certified igus cleanroom laboratory during the development process to find a solution that will meet the increasing cleanroom requirements.

Learn more about the igus® test laboratory

Comparisons with other products for cleanroom applications

⬤⬤⬤⬤⬤ Most suitable | ⬤ Rather less so | Yes | X No

	C6 e-chain	E6/E6.1 e-chain	E-skin corrugated tube	Flat cable guide e-skin flat
Class 1 according to EN ISO 14644-1	Continuous cleanroom tests in the IPA certified igus cleanroom laboratory	✔	✔	✔
Modularity/building block principle	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤
Components individually interchangeable	✔	✔	✔	✔
Quick filling, openable	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘
Fast delivery	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⭘
Easy maintenance	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘
Available from stock	✔	✔	✔	✔
Can be shortened	✔	✔	✔	✔
Can be widened	✔	✔	✔	✔
High productivity rate	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘		⬤⬤⬤⬤⬤
No minimum order quantity	✔	✔	✔	✔
Cost-effective	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘
Suitable for unsupported applications	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⭘⭘	⬤⬤⭘⭘⭘
For high dynamics	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⭘
Space-saving	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘
Fill weight	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
Up to 36 months guarantee	✔	✔	✔	✔
Saves resources	✔	✔	✔	✔
Everything from one source (chain, cable, connector)	✔	✔	✔	✔
Products also available individually	✔	✔	✔	✔
Quiet, smooth operation	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
Online calculation of service life	X	✔	X	X
Online interior separation configurator	X	✔	✔	X
Suitable for the following industries	- Electronics manufacturing - FPD production - Semiconductor Industry - Microelectronics - Panel robots - Packaging	- Electrical manufacturing - Semiconductor industry - FPD production - Microelectronics - Panel robots - Packaging - Plotter - Medical technology	- Electrical manufacturing - 3C industries - Dispenser - Glass cutting - Semiconductor industry - FPD production - Microelectronics - AOI	- Electrical manufacturing - 3C industries - Bonding - Dispenser - Semiconductor industry - FPD production - Medical technology - Microelectronics - AOI

More information

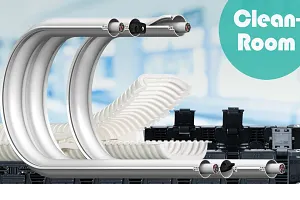

More cleanroom e- chains®

Further abrasion-resistant e-chains® for cleanroom applications according to Class 1 in acc. with EN ISO 14644-1.

Browse cleanroom e-chains®

Cleanroom

Discover further valuable information on cleanrooms and find out about further cleanroom products.

Learn more about cleanrooms

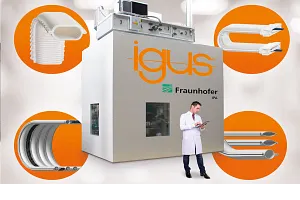

Cleanroom test laboratory
