E4Q | Tool-free for faster assembly
Quieter, robust, easy-to-install e-chains®.
E4Q is designed to provide the best possible solution for unsupported lengths and long travels. Based on the robust e-chain® standard E4.1, which has been tried and tested for over 12 years, the new series offers a longer service life and a higher level of modularity.
The crossbars feature an easy-to-open mechanism which does not require any tools. Simply, lift the latch with your finger on each end to remove and snap it shut to attach. This innovative new solution cuts the assembly time by up to 40% compared to the standard E4.1 e-chain®.
Typical areas of application: machine tools, crane systems, automation systems
E4Q/H4Q e-chain® series features
- Crossbars - the e-chain® can be opened and closed without any tools at all. Crossbars and shelves lock in the side section for even greater holding strength. The e-chain® can be filled in considerably less time.
- Save weight – This new design has reduced material that did not provide functionality with regard to the load on the e-chain®. This has happened both inside, between the stop-dogs, as well as outside. In the process, nature-inspired rounded shapes were used for the design.
- Vertical and horizontal stop-dogs – the vertical stop-dogs provide extra rigidity and allow large unsupported lengths. The horizontally arranged stop-dogs are particularly important if the e-chain® needs a certain degree of flexibility and durability in areas with excessive bending, for example, over long travels.
- Optional noise dampening – Concealed system for noise reduction. Can be retrofitted any time. Rubber elements attached to the horizontal stop-dogs additionally dampen the impact noise of the already very quiet e-chain®.
tool-free e-chain® that can be opened on both sides
Series E4Q.34
inner height [hi]: 34 mm
inner width [Bi]: 075 - 350 mm
bend radius [R]: 063 - 300 mm
pitch: 56 mm
Series E4Q.44
inner height [hi]: 44 mm
inner width [Bi]: 075 - 350 mm
bend radius [R]: 075 - 350 mm
pitch: 67 mm
Series E4Q.58
inner height [hi]: 58 mm
inner width [Bi]: 100 - 500 mm
bend radius [R]: 135 - 500 mm
pitch: 91 mm
Series E4Q.82
inner height [hi]: 82 mm
inner width [Bi]: 100 - 500 mm
bend radius [R]: 150 - 1,000 mm
pitch: 111 mm
tool-free e-chain® with crossbars every other link, openable from both sides
Series H4Q.34
inner height [hi]: 34 mm
inner width [Bi]: 075 - 350 mm
bend radius [R]: 063 - 300 mm
pitch: 56 mm
Series H4Q.44
inner height [hi]: 44 mm
inner width [Bi]: 075 - 350 mm
bend radius [R]: 075 - 350 mm
pitch: 67 mm
Series H4Q.58
inner height [hi]: 58 mm
inner width [Bi]: 100 - 500 mm
bend radius [R]: 135 - 500 mm
pitch: 91 mm
Series H4Q.82
inner height [hi]: 82 mm
inner width [Bi]: 100 - 500 mm
bend radius [R]: 150 - 1,000 mm
pitch: 111 mm
E4Q e-chain® advantages
Tech up
- Tool-free opening and closing
- Reduced projection into the interior for easier filling with the open e-chain® 1
- 15% greater crossbar pull-out strength 1
- 10% less weight thanks to material recesses 1
- Optionally 17dB(A) quieter due to noise dampening parts made of noise-optimized material 2 - only upon request
1 Compared to the E4.1 system
2 Compared to the 4040C series
Cost down
- 40% less assembly and installation time compared to the E4.1 system
- Up to 35% saving possible in application in the borderline area 3
- 4-year guarantee
- Predictive maintenance – optional with the i.Sense additional module
3 Due to a higher fill weight, the more cost-effective smaller series can be used if necessary
Proof
- Proof Noise: 17db(A) less than 4040C
Sustainability
- 10% less material = 10% less energy consumption during production
- Have your e-chain®, regardless of manufacturer, processed in the igus® "chainge recycling program"
E4Q cable carrier components
NEW: universal interior layout
Depending on accessibility, choose the side from which you want to fit the shelf and see whether it is easier to access the inner or outer radius of the energy chain in order to release the crossbars. The shelves are locked in place by means of the integrated slider and automatically when the crossbar is fitted. Thanks to positive-locking, assembly is possible with virtually no force. Locking is simple and fast, but the shelves are held securely in place. To unlock, release the crossbar on the inner or outer radius, depending on accessibility. The new E4Q e-chains can be opened quickly and without tools. After the crossbar has been released, the shelf can be unlocked by means of the slider and then simply pulled out.
Complete flexibility, safety and ease of installation in one

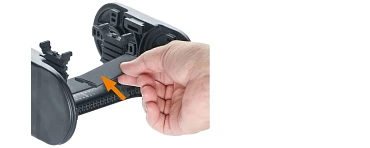

Opening of the lock via integrated slider.

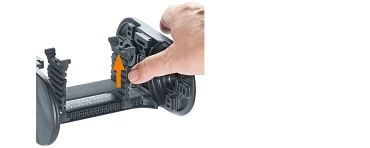

Shelf can be used in several layers and locked

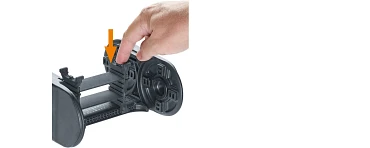

Lock is automatically activated.
